SickSTi and I decided to install a set of fender braces on his 06 STi and I figured it would be a good idea to take some pics and post up a "how to". This particular set was made by Creative Werks, they look like the Happi Motoring ones I used, but most importantly they are much sturdier than the stock ones. Once off the car you can flex the stock ones by hand where as the aftermarket ones dont budge. Once installed you can immediately notice how much flex it reduces from the front end of the car, feels like the suspension transmits less bump absorption to the body of the car. The car just feels structurally tighter in the front.
One thing to remember, the fenders are paper thin metal....slip with the wrench and you could easily dent the fenders....so be very careful.

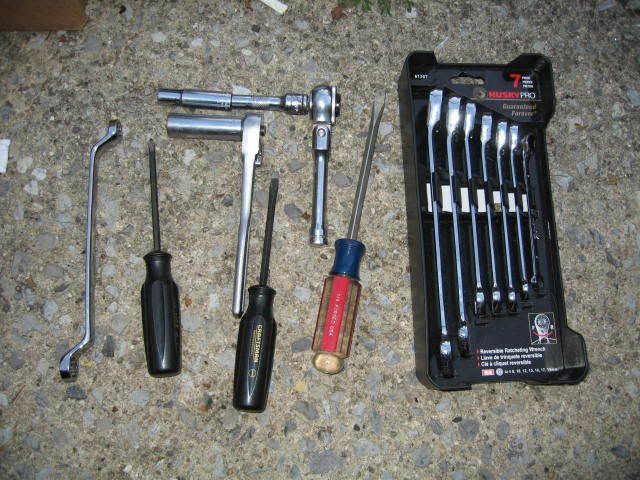

Heres a pic of some of the tools we used. The most important tool here is the offset 14mm wrench and 14mm ratcheting wrench. Also a flathead & phillips screwdriver for the fender liner clips. 10mm socket and wrench for the fender bolts.

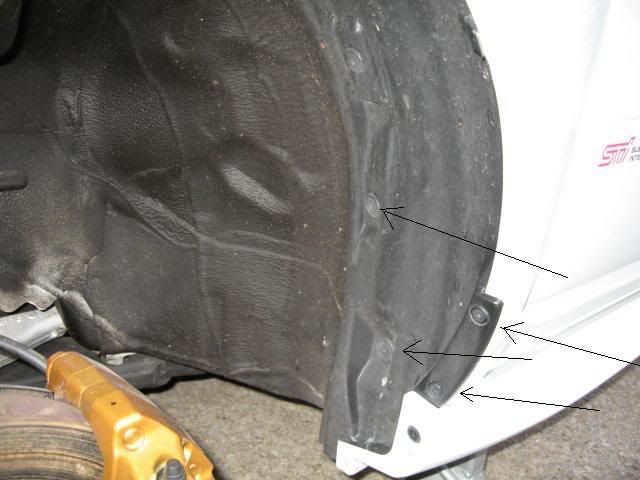

Jack the car up and place jackstands under the front jacking points. Never attempt to work under the car using just a jack. Remove all the fender liner clips except these. No need to remove it completely.

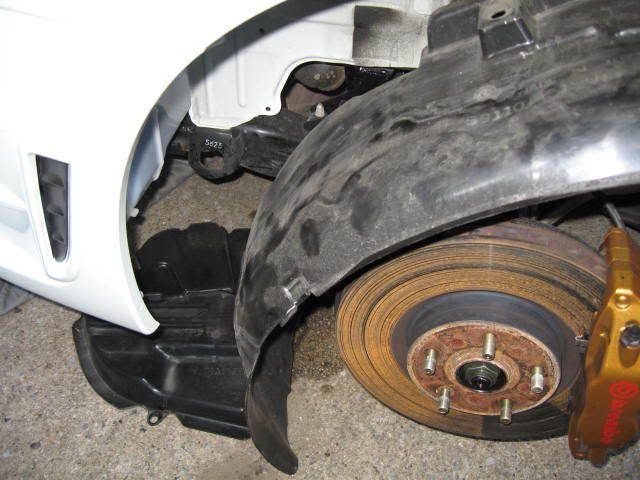

Let the liner hang like such. You will have plenty of room to work.

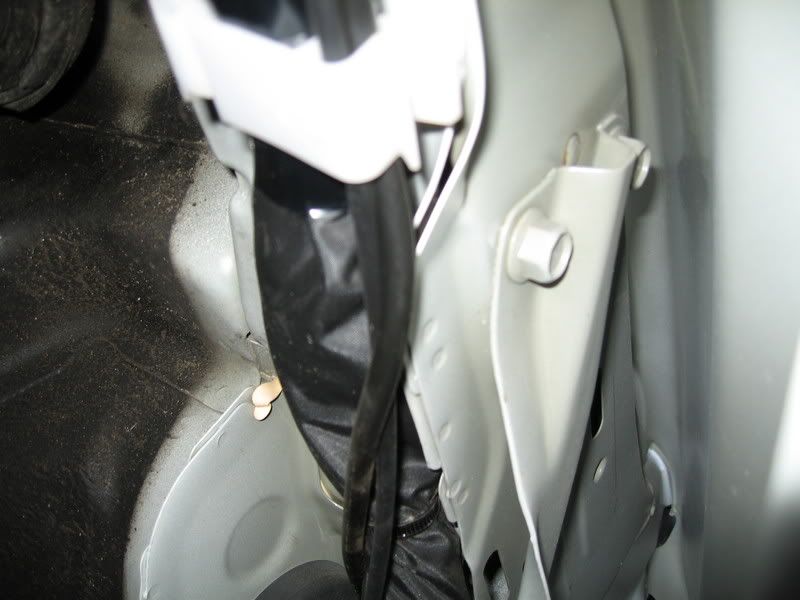

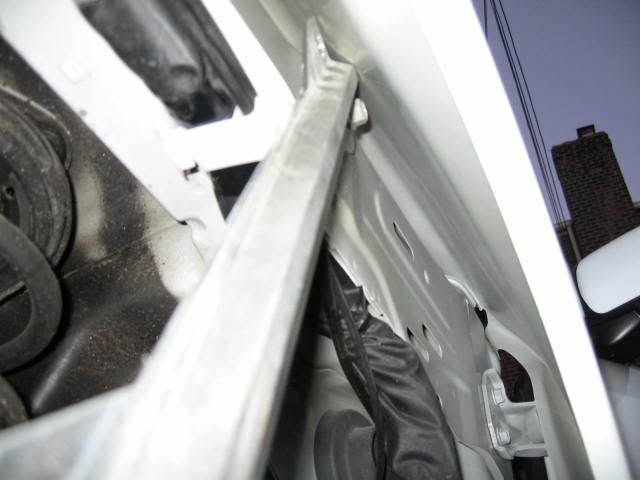

If you look up behind the fender you can see the stock brace. This is the top part of the stock brace. That top most bolt can only be removed by removing the fender bolts and pushing the fender out a bit. Not a big deal though.

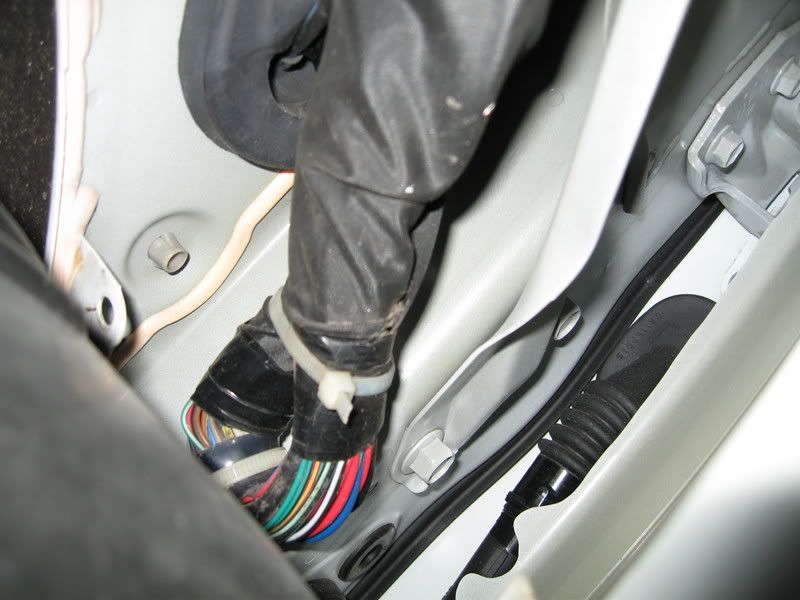

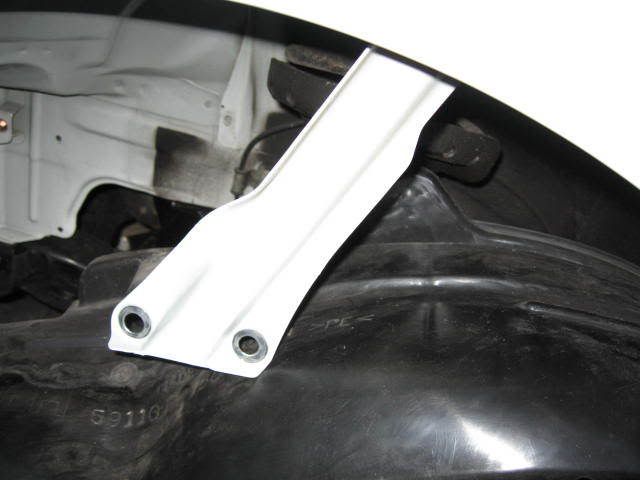

Here is rear of the stock brace where it attaches to the body. All 4 bolts securing it are 14mm.

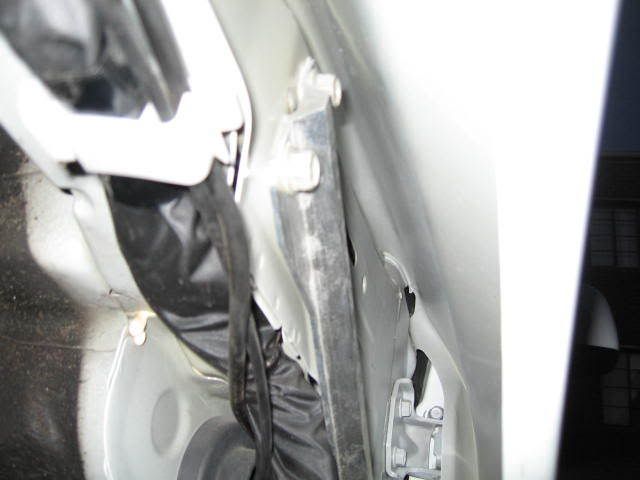

Using the offset 14mm wrench & ratcheting wrenches remove 3 of the 4 bolts holding the stock fender brace leaving the top most bolt still in. Swinging the brace downward will make it easier to get to the top most bolt. Again be very careful when cracking the bolts loose and removing them, one slip and you WILL dent that fender from the inside out!

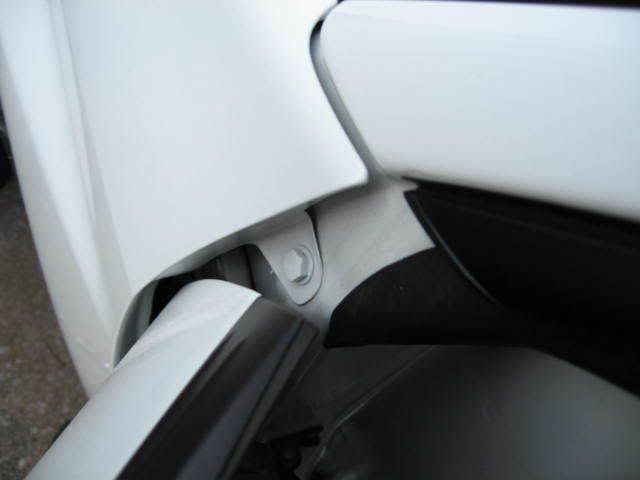

Here is the top most bolt and you can see where it wont come out unless you loosen up and push the fender out.

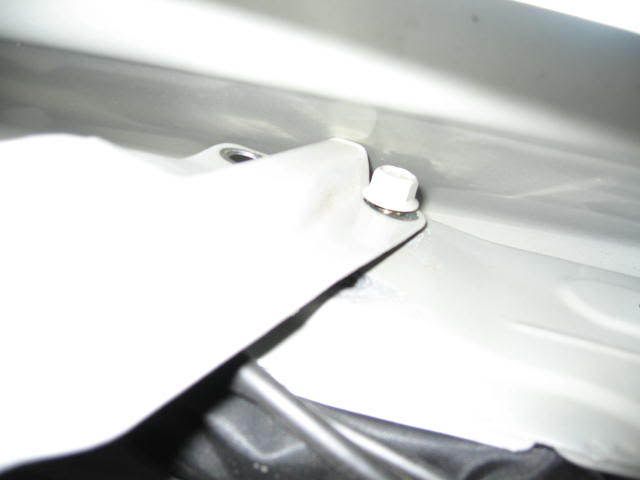

Remove the 3 10mm fender bolts on top of the fender and this 10mm bolt accessed by opening the drivers (or passengers) door.

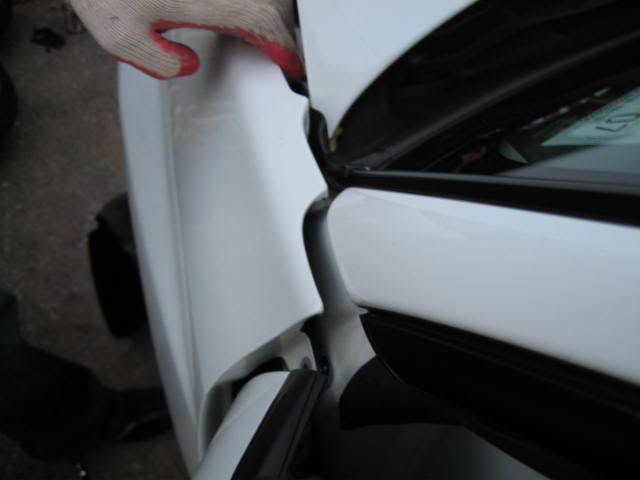

Push the fender gently out as such. This will give you enough room to remove that top bolt.

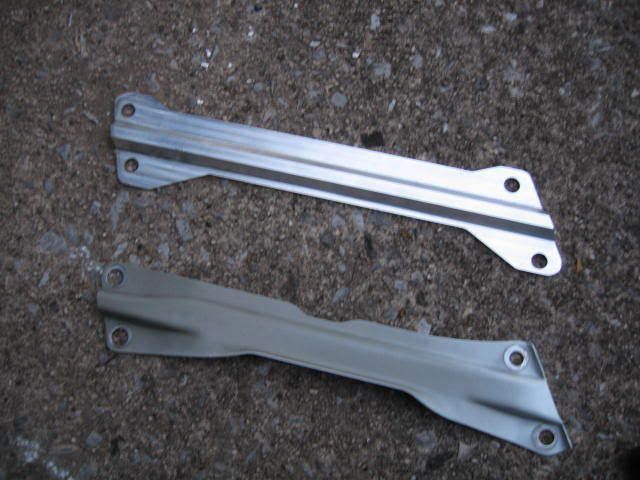

Here is a pic of the new Creative Werks brace compared to the flimsy stock one.


Start installing the new brace exactly as you removed the stock one. While still keeping the fender pushed out install the new brace with the top most bolt, you can get it 90% of the way in by hand (at least we did) then rotate the brace into position and install the remaining 3 bolts and tighten all 4 using the offset 14mm wrench....Again be very careful as you dont want to slip and dent your fender.


Here is pic of the new fender brace installed


Now you can reinstall the fender bolts and liner and repeat for the other side. Definitely one of the best improvements you can make to the front structural integrity of your STi in my opinion. If there are any improvements to turn in/handling, they are minimal at best as I didnt notice any improvement in that area.


·
